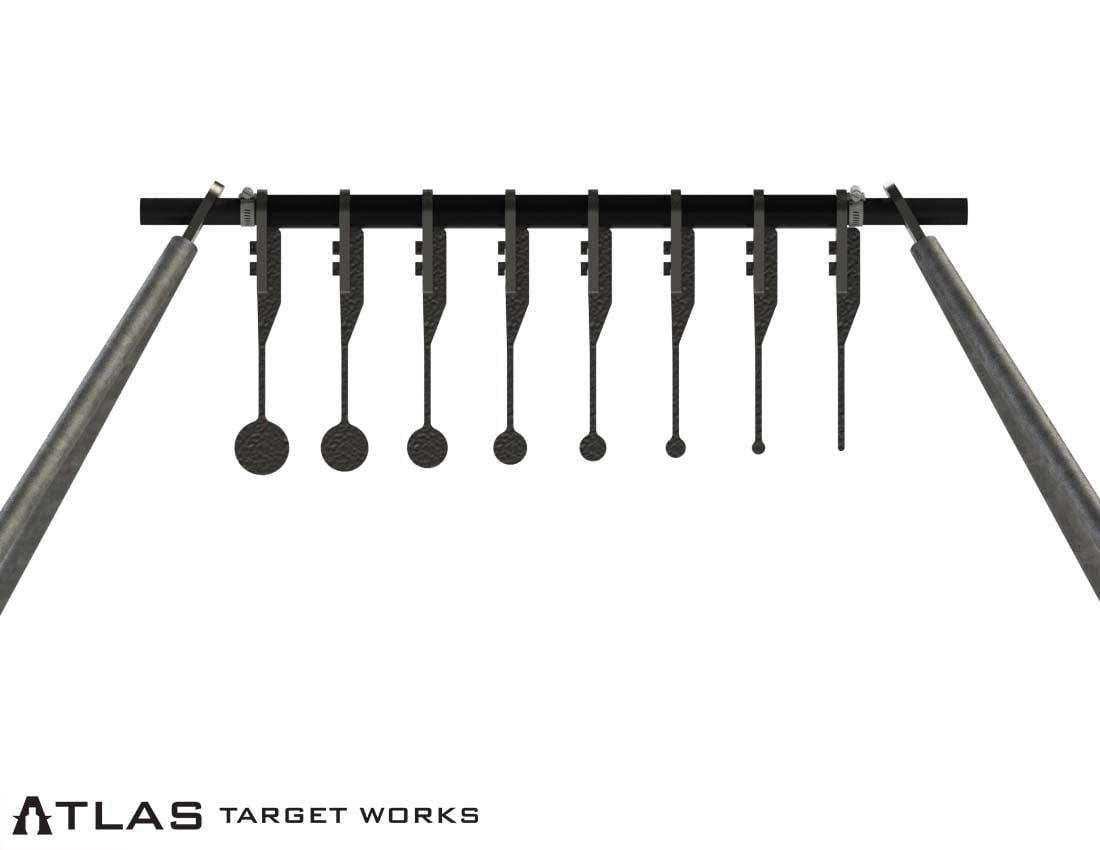

Know Your Limits (KYL) Target - Rimfire

Material
  • CNC Laser cut 3/8" AR500 steel for clean, precise cuts

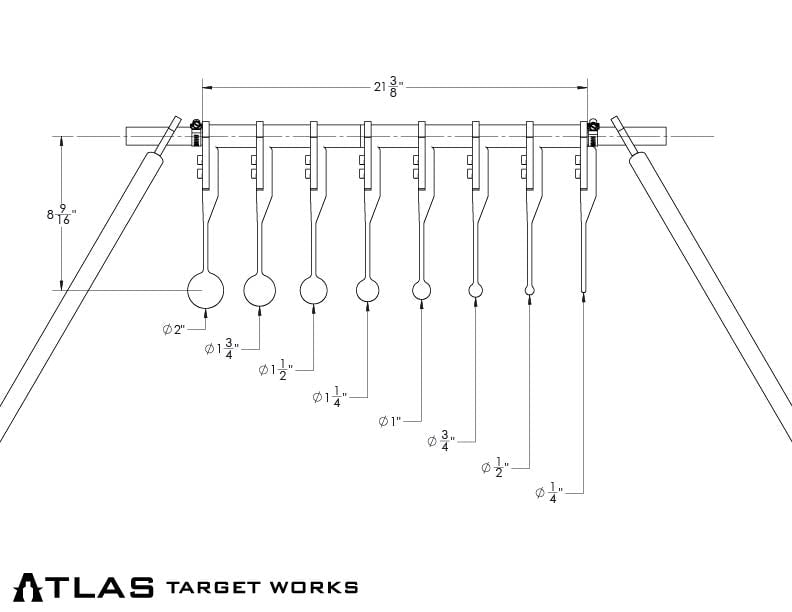

    • Target Sizes: 2" - 1.75" - 1.5" - 1.25" - 1" - .75" - .5" - .25"

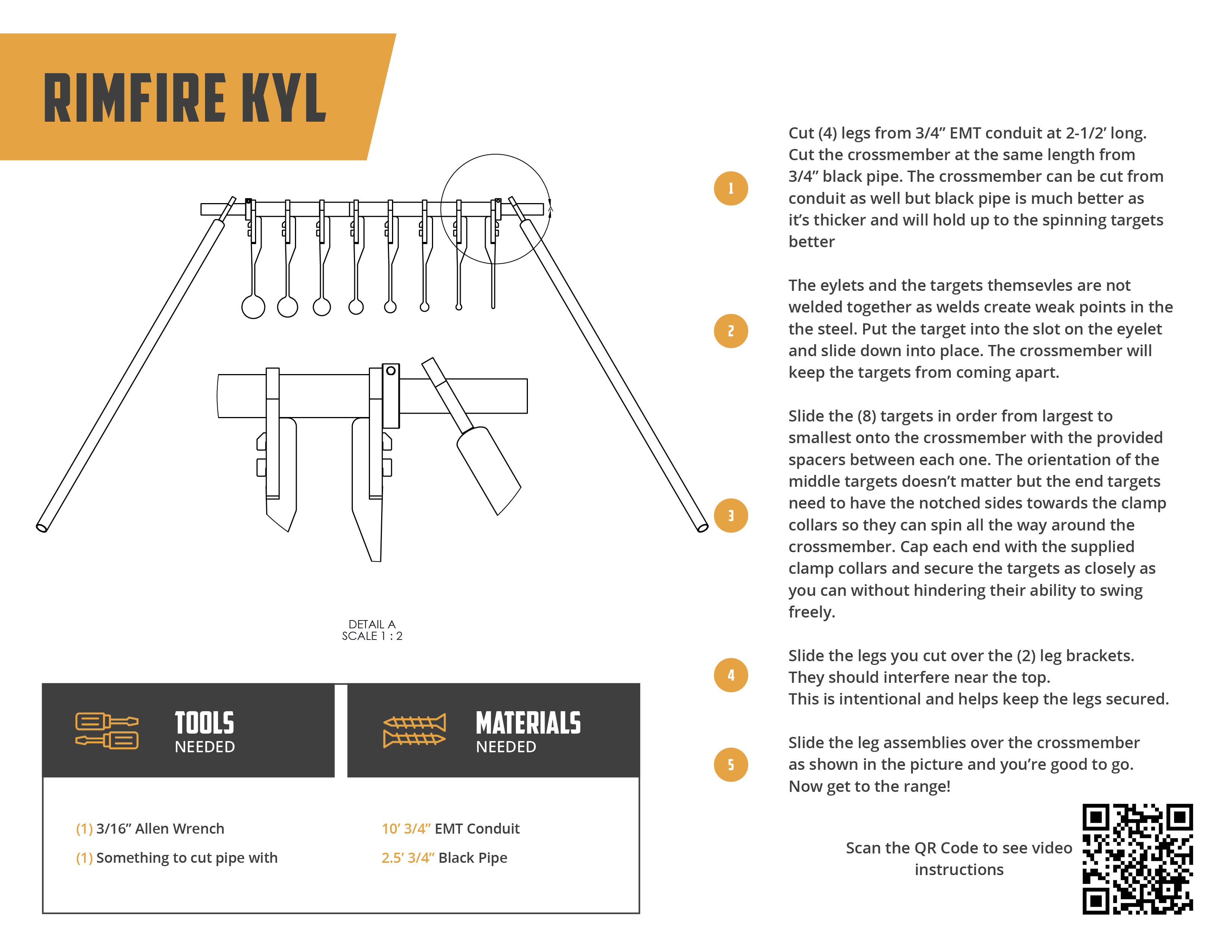

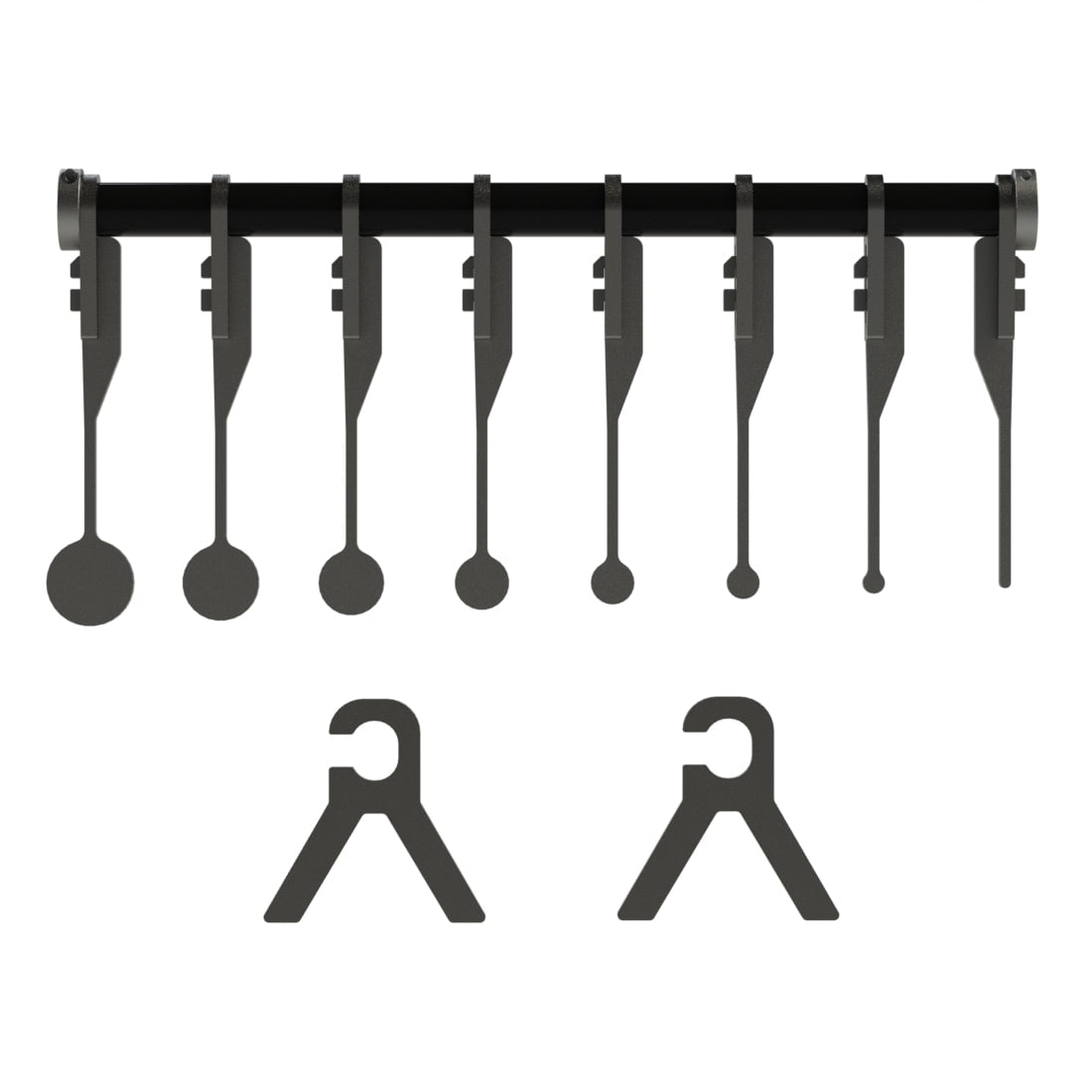

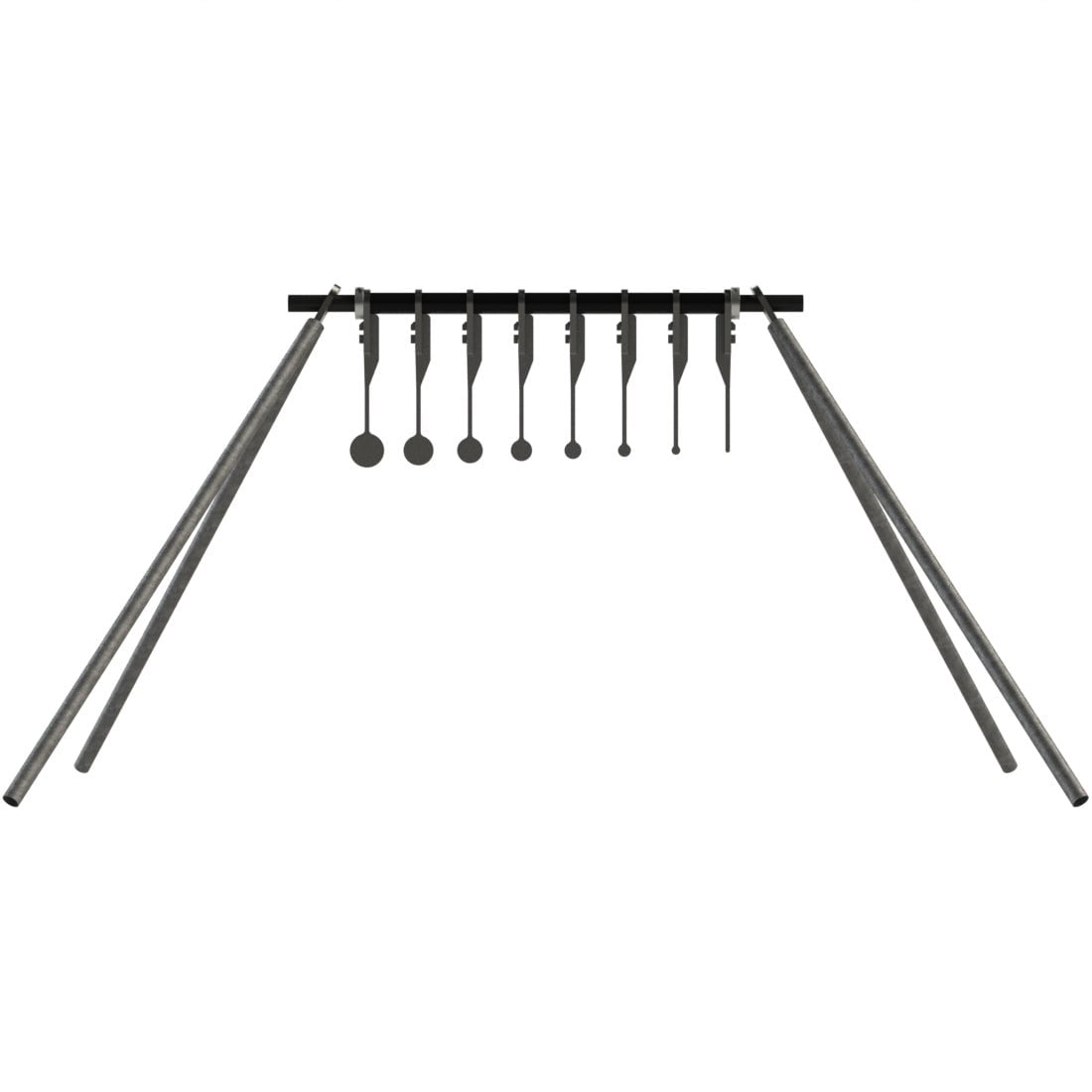

    • The kit comes with everything you need except (5) 2.5' lengths of 3/4" EMT Conduit or 3/4" Black Pipe.
    • Targets do NOT come painted

    You engage a KYL target by starting with the largest target and shooting each subsequently smaller target gaining points for each target struck. You can stop at any target to keep the points you've earned. The catch is that if you miss, you lose all your points. To get as many points as possible you need to... wait for it... know your limits.

    Additional Note: Every other KYL design I've seen uses 1/4" material and in my pursuit to design the perfect KYL target I've found that it's impossible to make one with 1/4" thick material that won't bend with very little use. Previously, I solved this problem by using a design that I had to tig weld the round target onto the hanger, and although it worked great for quite some time, after heavy use the welds start to fail.  This design using 3/8" AR500 is the ultimate in functionality and more importantly reliability, so you can enjoy this target for many years to come!

    From a customer that just emailed me... "I also just received a Kyl set from [redacted].  After just a few shots the 1/2" and 1/4" targets were already bending!  Very disappointing.   That's why I ordered your set of 3/8" thick swingers.   The others were 1/4" thick"


    Customer Reviews

    Based on 41 reviews
    95%
    (39)
    5%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    D
    David Maubach
    Atlas Target Works Rimfire KYL

    This is a well built, sturdy KYL rack. I purchased one from another company that was made out of 1/4" AR500 steel and the smallest 3 targets were bending after just 10 hits from standard velocity 22lrs. The Atlas target rack is staying strong! The only thing I'd like to see changed is to add a hole in the leg brackets to be able to attach the leg pipes with a clip. This would make setup a little easier and quicker. The leg brackets are so tough that driling them after the fact is really difficult.

    B
    Bryan W
    Well built KYL

    This KYL is really solidly built. This one is very stout and seems like it should stand up to a bit of abuse for years to come. Super easy to assemble and as usual it is well packaged and shipped super fast. Buy it, you won't regret it.

    G
    Greg
    Best Targets

    Daughters, son-in-laws, nephews, buddies all shoot at my range. Most compete in Precision Rimfire, NRL22, NRL22X. Atlas Targets is our brand. The new KYL is a hit! I run all my swingers with a 1” solid steel top bar, no messing around!

    J
    J.P.
    Probably The Best Made KYL Target Available!

    Because I have several of Brad's other targets I figured that his KYL target would be built to last. Still I looked at several others online before I decided to by Brad's. My order arrived quickly and in great shape. This was my fourth order from Brad and it always amazes me the attention that goes into packaging. I'm really impressed with the manufacturing and design of this target, especially the way that the target is welded to the hanger. There must be several easier and quicker ways to join the target and hanger together, but I doubt that there are any others that are as strong or stronger than they way that Brad decided to do it. That's what I've come to expect from Atlas Target and that's why I keep purchasing Brad's products.

    The weather here hasn't been cooperating with my schedule so I can't tell you how much fun that I've had with the target, but I'm sure that it won't disappoint me.

    J
    Jason Nedved
    .22 KYL

    I have had this set up outside for two years now. It gets dragged around from spot to spot, used for practice and it matches. I have never had any issues.
